Automatic Shrink Wrap Systems
Made in italy
Continuous side sealing machine with intermittent, fixed bar (previous generation to the STAR EVO “new design”).
The machine is equipped with a fixed transversal seal bar with intermittent operation which moves vertically as the product arrives, to cut and seal the front and back of the bag. Side sealing always takes place continuously to allow product packaging without length limits. Product width up to 1000 mm, product height up to 400 mm. Speed with A4 format up to 3000-4500 pcs/h. Packaging completely closed and sealed on 3 sides, with handle, with Euroforo and easy opening, in modified atmosphere (MAP): possibility of packaging in protected atmosphere with Polypropylene barrier film or coupled.
STAR EVOLUTION design available in COMBO format (with compact tunnel) or separate tunnel.
'BABY' version available with bar width 300 mm; version 500, 600, up to the widest version, 800 mm, with standard height of 300 mm or with optional up to 450 mm. Versions 500 & 600 are also available in the "COMBO" version with built-in tunnel. Thanks to the optional and "double" sealing systems, you can work with all the types of film available on the market: polyolefin, polypropylene, flat or center-folded film, neutral or printed.
Available in intermittent or box motion version based on customer's speed requirements or with "rotative" bar for high speeds, even in special versions with intermittent or moving, vertical seal bar.

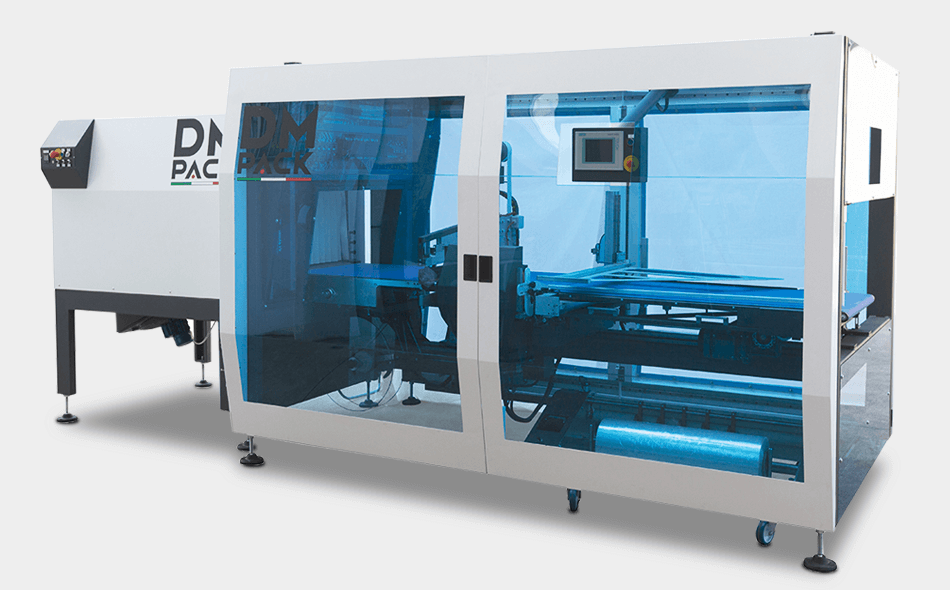

STAR EVO SS is available in the 'BABY' version with bar width 300 mm; version 500, 600, up to the widest version, 800 mm, with standard height of 300 mm or with optional up to 450 mm. A shrink tunnel from our range can be added to complete the packaging cycle. Thanks to the optional and "double" sealing systems, you can work with all the types of film available on the market: polyolefin, polypropylene, flat or center-folded film, neutral or printed (with Euroforo, with a Handle, with Pre-cutting for easy opening and with "open-close").
Available in intermittent, box motion or rotary version, based on speed requirements.
The machine is equipped with a moving, transversal, heat seal bar in continuous operation that "accompanies" the products. There are no stops and starts since the bar works continuously to reach the high speeds and provides greater stability. Side sealing always takes place continuously to allow product packaging without length limits. Product width up to 1020 mm, product height up to 400 mm. Speed with A4 format up to 6000 with DEA Standard and up to 9000 pcs/h with the SERVO brushless motors.
Packaging possibilities: packaging completely closed and sealed on 3 sides, shrinked, with handle, with Eurohole and easy opening. In modified atmosphere (MAP): possibility of packing in a protected atmosphere with Polypropylene barrier film or coupled.
AUTOMATIC SHRINK WRAP SYSTEMS
MADE IN TAIWAN

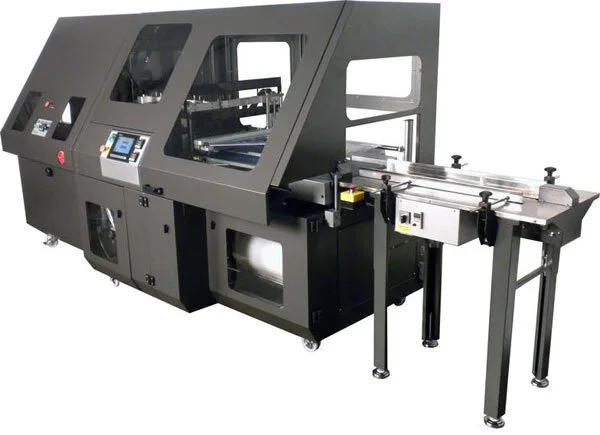

Combination Fully Automatic L’ Sealer and tunnel built on same frame”, “APA” Automatic Product Adjustment with features like motorized adjustment of inverting triangle,infeed, and center seal (no more crank handles to turn because of a fully motorized adjustment), single piece seal blade, easy load film cradle, fully enclosed safety doors, easy access control panel, self diagnosing Delta PLC, Delta 7″ Color Touch Screen with 40 program memory, “Vertical Seal Head Design” for packages up to 8″ high, Variable speed drive (0 to 110 FPM), Speeds UP to 40 PPM.

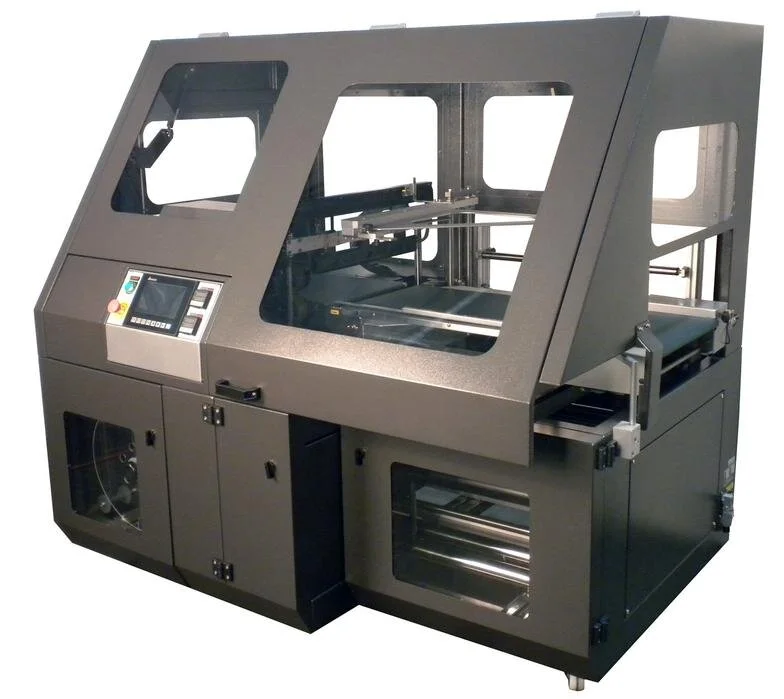

Features the new “APA” technology (Automatic Product Adjustment). Once package size is programed into machine operator simply pushes a buttom and the machine will automatically adjust the infeed conveyor position, inverting triangle position for the package size all under 15 seconds. Teflon Coated Rotary wheel side seal after end seal. Speeds up to 40 ppm, Maximum package width 20″, 4” minimum package length. Designed for use with all polyolefin films. Polyethylene seal system optional. Maximum package height 8”. If products are longer than 4ft. additional exit conveyor necessary. 7″ color touch screen with Delta PLC and 12 Program memory. Center Seal Standard, PINWHEEL PERFORATOR, Locking casters.
